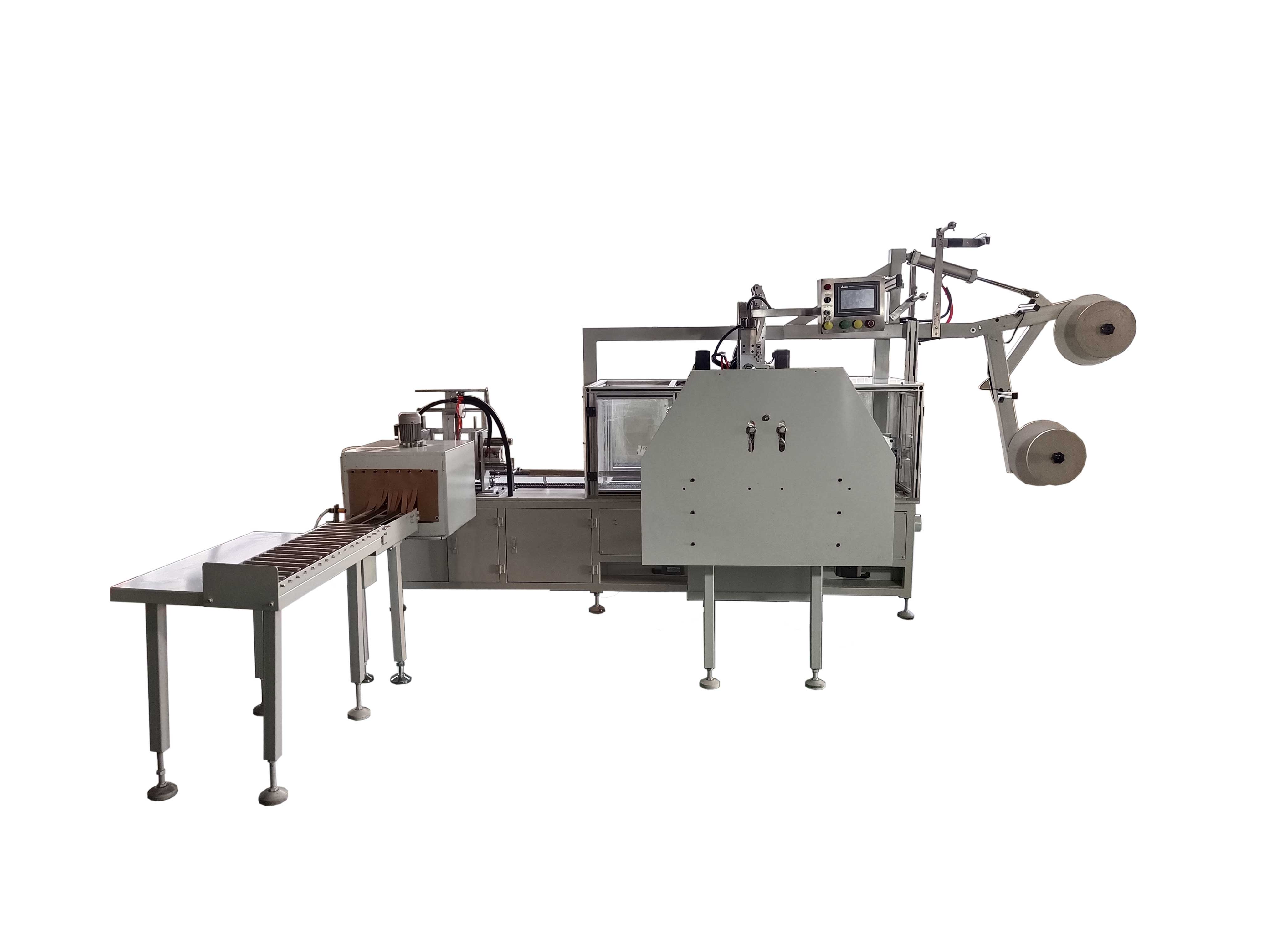

1. Scope of use: AGM battery separator packaging plate assembly
2. Model: JQBF-18
3. Processing capacity: Calculated based on 7 positive plates and 8 negative plates, approximately 330 groups per hour
4. Power supply and power: AC380V, 50HZ, 5KW
5. Equipment weight (including accessories): 1200kg
6. Overall dimensions:
Host overall dimensions: 2800*850*1800mm
Plate preparation platform overall dimensions: 1100*950*1300mm
Hot air box plus pallet overall dimensions: 2100*500*1000mm
Adjustable height of main machine, heat sealing platform and closing platform: 650-750mm
Plate preparation platform adjustable height: 850-950mm
7. Main materials: 45#, Q235
8、Characteristic description: Used to start and stop battery plate encapsulation and assembly. It is a special equipment designed for AGM separator manufacturing. It can realize the continuous completion of automatic plate picking, automatic separator roll paper feeding, and discounting. Wrapping of plates, assembling of electrode plates, wrapping with plastic film, heat shrinking of plastic film, etc. The machine is equipped with a negative pressure air outlet, a lead powder collection tray, high environmental protection and energy saving efficiency, fast speed, easy operation, quick structural adjustment, automatic alarm for machine failure, and LED lighting. The equipment adopts two modes: manual and automatic. Relevant operating parameters can be set on the operation panel. During normal operation, the automatic working mode is selected.
